برد اکو و پری آمپلی فایر حرفه ای XH-M173

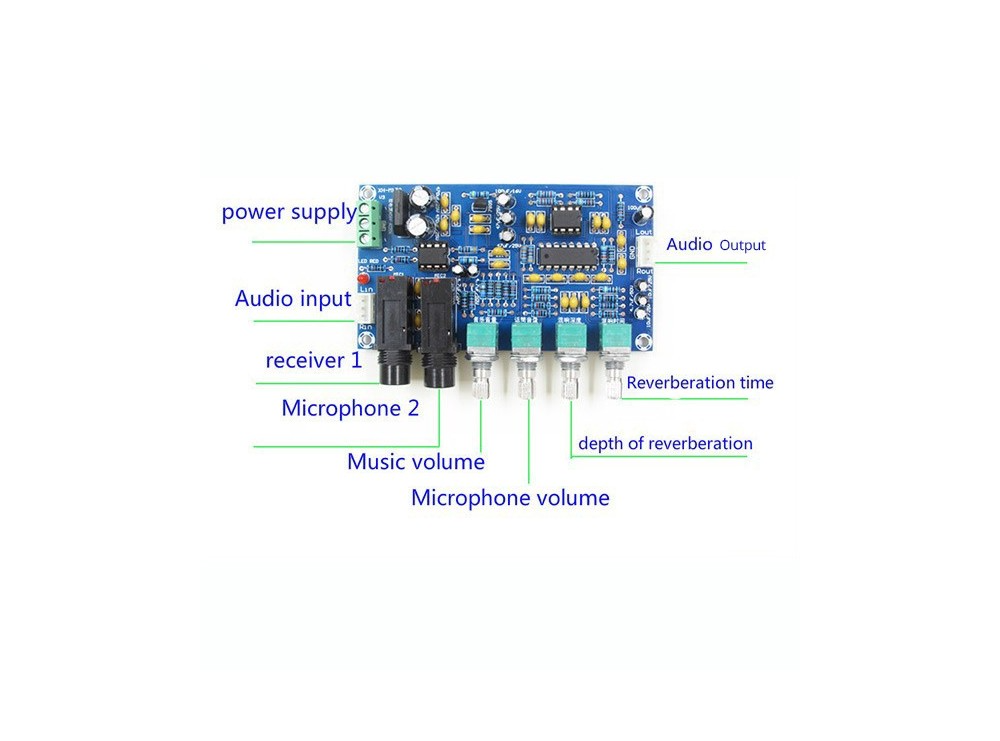

مشخصات ولوم ها

ولوم ۱ : کنترل صدای ورودی AUX
ولوم ۲ : کنترل صدای ورودی میکروفن ها
ولوم ۳ : تکرار صدا
ولوم ۴ : حجم صدا و اکو

Descriptions

Model: XH – M173
Name: karaoke reverberation board
output Load :4-8ohm
current : 3 Amp
chip selecting type :dual power AC6-20 v

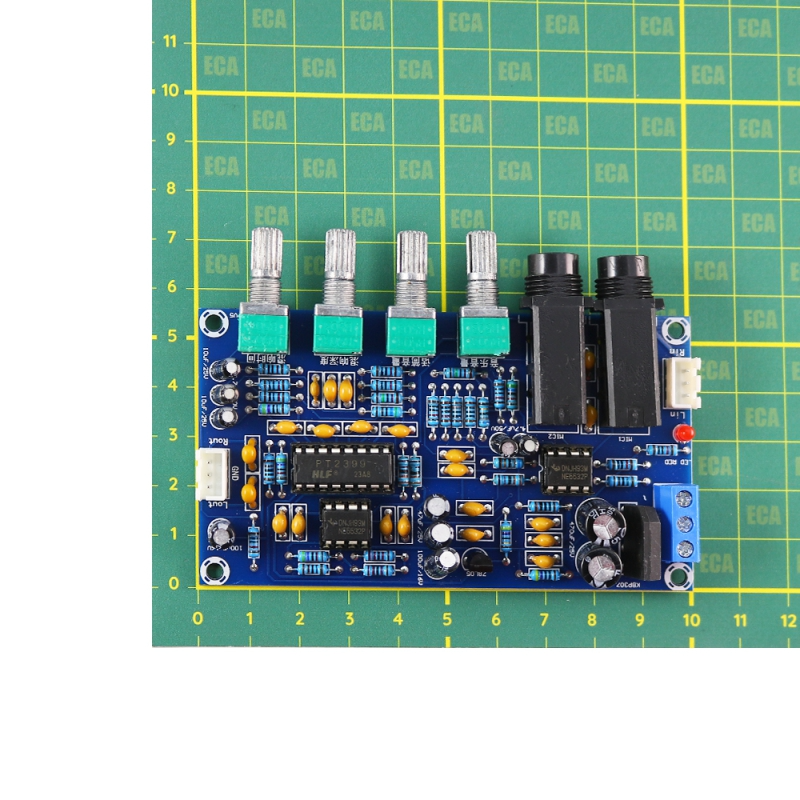

Size: 100 * 57 * 17 mm
Weight: 62 g
note:
۱٫Using AC double 12 v transformer
۲٫This board audio output part need Received amplifier board, not directly Received to the Audio
Description:
Product Name: Cara OK reverberation board
Output load: after power amplifier
Chip selection: dual power AC12V
Overall size: 100*57*17MM
Product net weight: 62g
Instructions:
GND Rin: Lin respectively, said the audio input signal in the left and right channels
GND Rout: Lout respectively, said the audio output signal of the left channel ground
MIC2: MIC1 is used to connect the microphone, and the microphone connector can be plugged directly into the connector.
